class:center, middle

# Data Analysis With R

- - -

## Instructors: Elizabeth DiLuzio and Mark Yarish
### Follow along at: http://bit.ly/data-analysis-r<br>See the code at: http://bit.ly/data-analysis-r-code
![img-center-50](images/datapolitan.png)

---

# A Few Ground Rules
???
+ Facilitators establish the intention we have for the culture of the classroom

+ Step up, step back
--

+ One mic
--

+ Be curious and ask questions
--

+ Assume noble regard and positive intent
--

+ Respect multiple perspectives
--

+ Listen to comprehend, not to respond
--

+ Be present (phone, email, social media, etc.)

---

# Introduce Yourself to Your Neighbor
+ Who you are
+ Where you work
+ What are you hoping to learn today?
+ What you've done with code (any code)

---

# What to Expect Today
--

+ Introduction to R
--

+ Using R in Data Analysis
--

+ Getting Familiar: R Syntax + R Studio
--

+ 311 Data Analysis
--

+ Presentations!

---

# Key Skills

+ R syntax and commands
--

+ [RStudio](https://www.rstudio.com/)
--

+ Load data
--

+ Explore data
--

+ Wrangle data
--

+ Visualize data

???
+ Students will review progress and give feedback on key takeaways

---

name:housekeeping
# Housekeeping
--

+ We’ll have one 15 minute break in the morning
--

+ We’ll have an hour for lunch
--

+ We’ll have a 15 minute break in the afternoon
--

+ Class will start promptly after breaks
--

+ Feel free to use the bathroom if you need during class
--

+ Please take any phone conversations into the hall to not disrupt the class

---

# What is Analysis?
--

>“Analysis is simply the pursuit of understanding, usually through detailed inspection or comparison”

## - [Carter Hewgley](https://www.linkedin.com/in/carterhewgley), Senior Advisor for Family & Homeless Services, Department of Human Services, District of Columbia

???
+ Orient students to key concept in analysis
+ Use R to uncover meaning in data

---
# The Analytical Process

![img-center-80](images/valuechain.png)

???
+ Establish frame for the analytics process to be followed in class
+ Familiarize students with terminology (esp "data wrangling/data cleaning")
+ Demystify the process
+ Empower students to do analysis

---

# Exercise: Old Faithful

![img-center-70](images/old_faithful.jpeg)
.caption[Image Credit: Astroval1, [CC BY-SA 4.0](http://creativecommons.org/licenses/by-sa/4.0) via [Wikimedia Commmons](https://commons.wikimedia.org/wiki/File%3ABig_Dipper_Ursa_Major_over_Old_Faithful_geyser_Yellowstone_National_Park_Wyoming_Astrophotography.jpg)]

???
+ Facilitator provides context for the exercise by describing Old Faithful
+ Students will download script with prepared code snippets to run
+ Students will learn the steps of running summary statistics in R

---

# Identify the Question
--

+ What's the minimum amount of time I should plan to spend at Old Faithful?
--

+ Is there a relationship between the amount of time I wait and the length of time it erupts?
--

???
+ Students will understand the problem we're seeking to solve in class
+ Students will learn by example the value of problem setting.
+ This will be done by writing out explicit problem statement for 311 Noise, possibly vision 0 db after we have exercise.

---

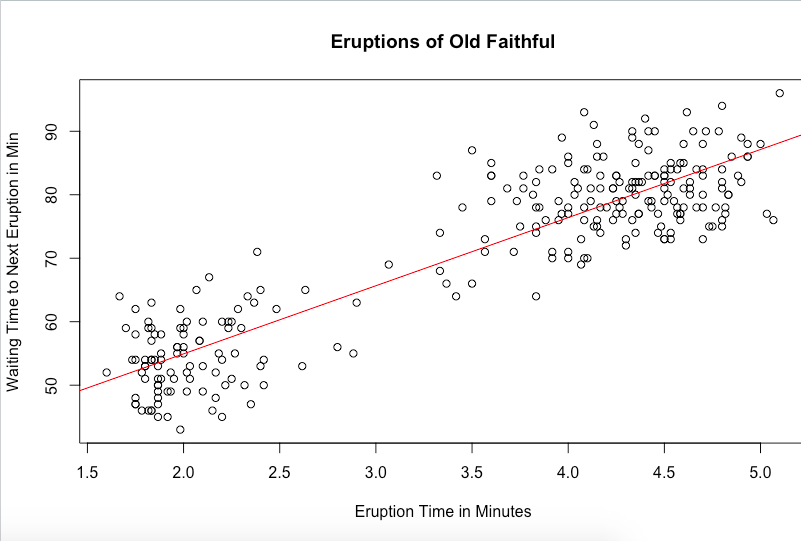

# Exercise: Old Faithful

![img-center-85](images/faithfulvis.png)

#### [Click to download the `faithful_a.R` code for this exercise (already loaded in RStudio)](code/faithful_a.R)

???
+ Students will open and load a simple dataset.
+ They will inspect the data in the viewer and confirm it loaded properly.
+ This will be done by live demo of code
+ Students will be writing code themselves
+ Introduce basic commands and tab completion
+ Describe comments and their purpose
+ Emphasize cooperation between participants

---

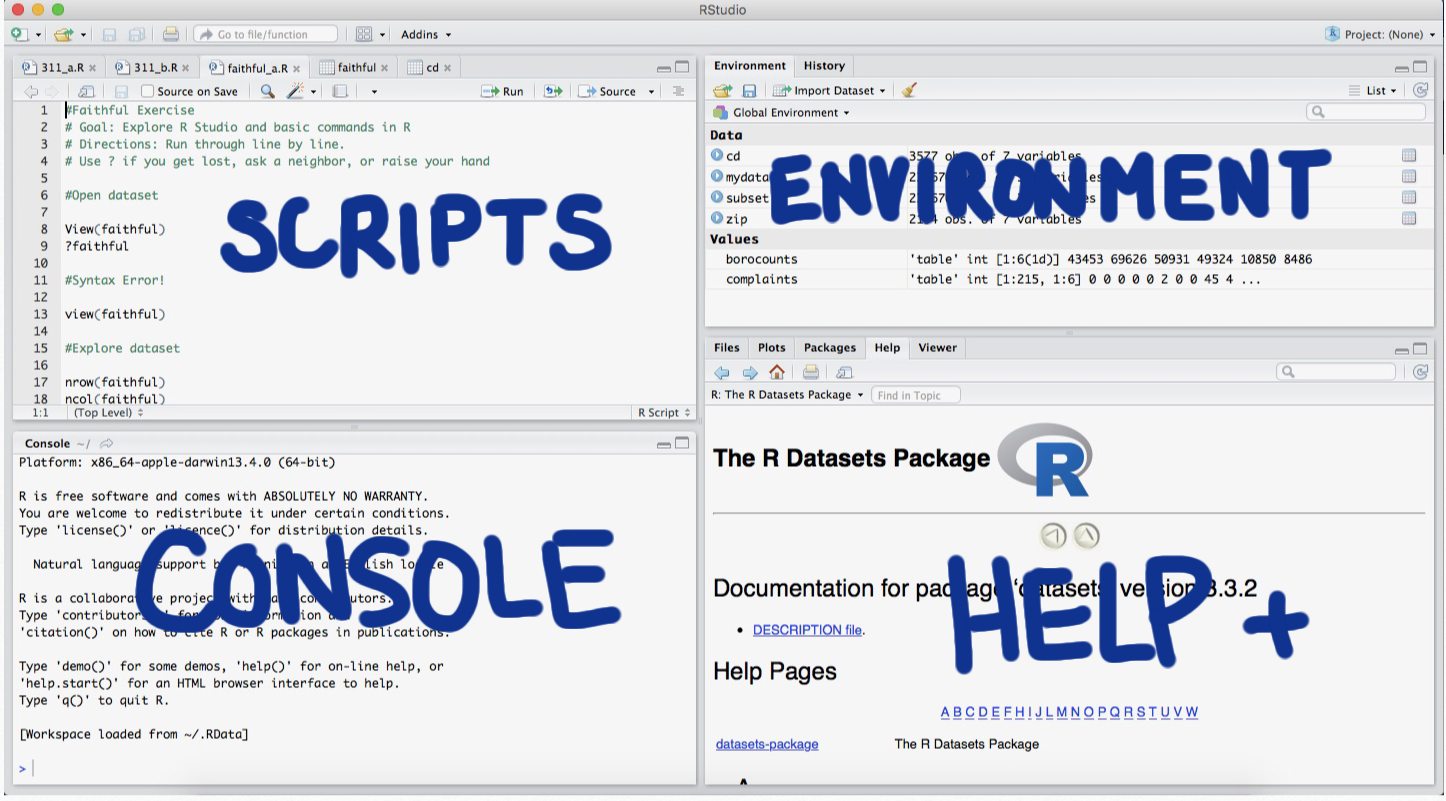

# [RStudio Introduction](https://www.rstudio.com/)

![img-center-80](images/rstudio_annotated.png)
### Find your student number and link in your workbook<br>.red[Username and Password: `rstudio`]

???
+ Introduce students to Console, Environment, and Help
+ Students will be familiar with the key features of the console for the exercises to come
+ This will be done by live demo and verbal discussion
+ Ctrl+L clear console

---

# What is Syntax?
--

![img-center-80](images/syntax.png)
.caption[Image Credit: AnonMoos, Public Domain via [Wikipedia](https://commons.wikimedia.org/wiki/File%3ABasic_constituent_structure_analysis_English_sentence.svg)]

???
+ Students will get vocabulary for accomplishing tasks in code
+ This will be done with an overview discussion

---

# R Syntax

```R
# basic command

command(dataset)
View(faithful)

```
???
+ Facilitator guides students through basic syntax in R for simple tasks
+ Instructor reinforces syntax idea and relation to regular sentence structure to convey meaning where appropriate
--

```R
# select a column

command(dataset$column)
mean(faithful$waiting)

```
--

```R
# get help

?help
?faithful

```

---

# Your Turn 1
--

+ Look through the code we just wrote
--

+ Make a change to one thing on the chart
--

+ If necessary, check out the help documentation
--

+ Be ready to describe what you did

---

![img-right-40](images/r_logo.png)
# What is R?
--

+ Statistical programming language
--

+ [Open-source](https://opensource.com/resources/what-open-source)
--

+ Made for and by people who work with data
--

+ Used for data analysis
--

+ For the history of R, [see this video](https://www.coursera.org/lecture/r-programming/overview-and-history-of-r-pAbaE)

???

+ Familiarize students with basics of R and set context
+ "Created for and by the people" - Julia Marden

---

# R vs. Excel
???
+ Facilitator compares R directly to Excel for context (assuming most participants are well-acquainted with Excel)
--

+ R is a _programming language_ while Excel is an _application_
--

+ R can work with much larger datasets than Excel
--

+ R can perform more complex operations than Excel
--

+ R commands can be easily saved, re-run, and automated
--

+ R doesn't have the icons, animations, and wizards of Excel

---

name:nola
# New Orleans Distributes Smoke Alarms

![img-center-40](images/neworleansfire.jpeg)
.caption[Image Credit: Michael Barnett [CC BY-SA 2.5](http://creativecommons.org/licenses/by-sa/2.5), via Wikimedia Commons]

???
+ Students will be inspired to use their knowledge in practical applications

---

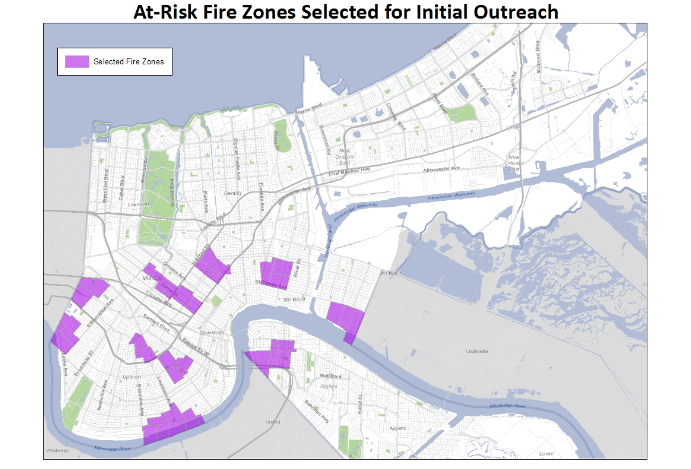

# Targeted Outreach Saves Lives

![img-center-90](images/nolasmokealarm.png)
.caption[Image Credit: City of New Orleans, via [nola.gov](http://nola.gov/performance-and-accountability/nolalytics/files/full-report-on-analytics-informed-smoke-alarm-outr/)]

???
+ Students will be inspired to use their knowledge in practical applications

---

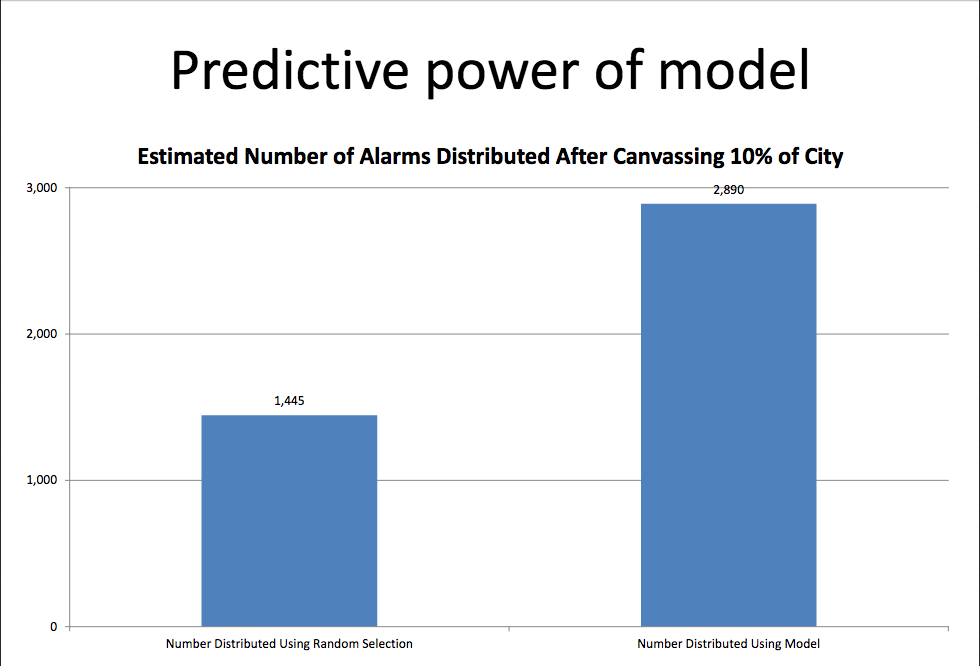

# Targeted Outreach Saves Lives

![img-center-90](images/nolaimpact.png)
.caption[Image Credit: City of New Orleans, via [nola.gov](http://nola.gov/performance-and-accountability/nolalytics/files/full-report-on-analytics-informed-smoke-alarm-outr/)]

???
+ Students will be inspired to use their knowledge in practical applications

---

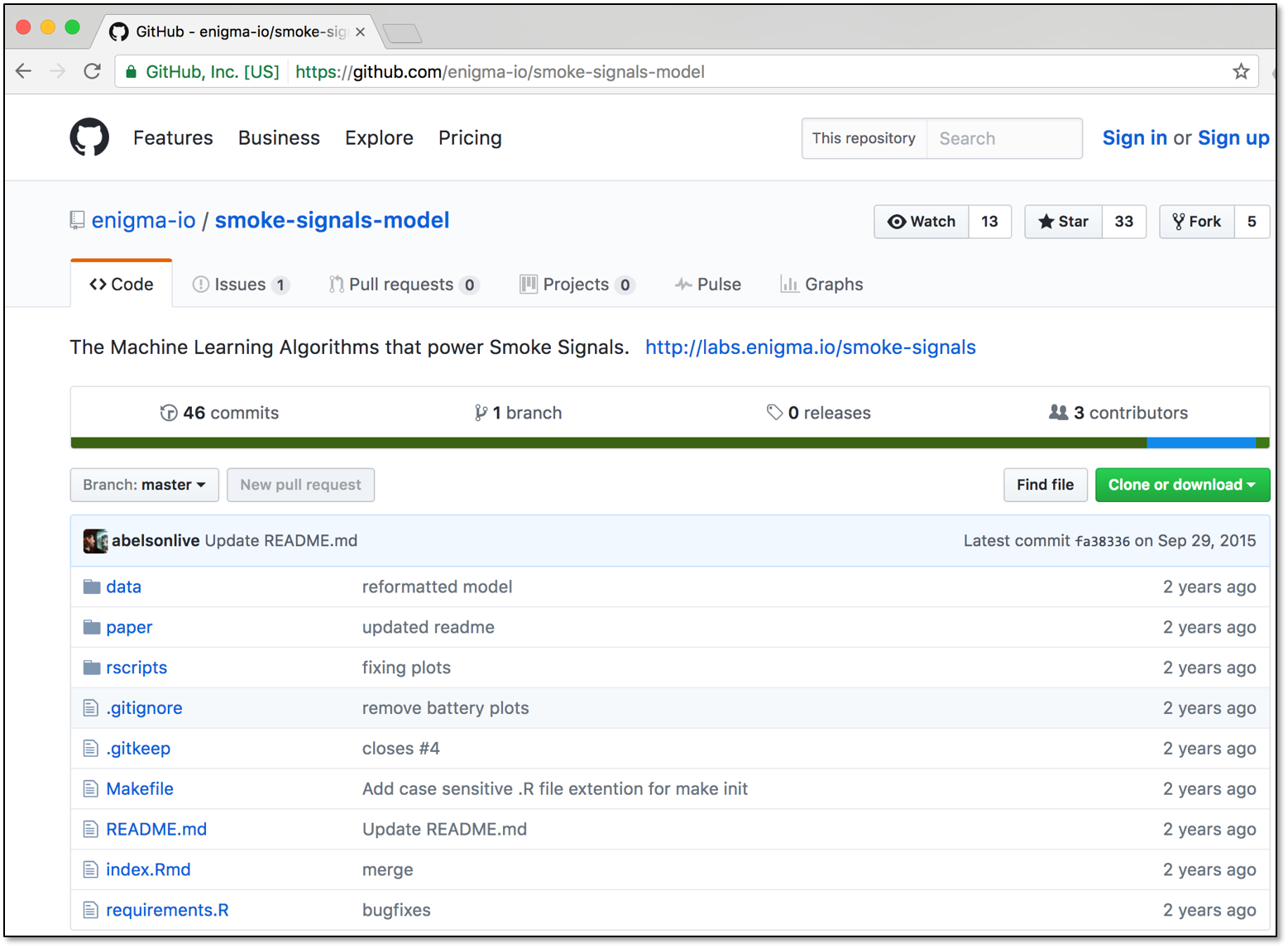

# And Here's the R Code for It
[![img-center-85](images/smoke_signals_github_outline.png)](https://github.com/enigma-io/smoke-signals-model)
[Click here for the code](https://github.com/enigma-io/smoke-signals-model)

---

class:center,middle
# Wrap-Up

---

class:center, middle
# 15 Min Break
![img-center-100](images/real_programmers.png)
Source: https://xkcd.com/378/

---

# 5 Data Analytics Tasks
--

1. Sorting
--

2. Filtering
--

3. Aggregating (PivotTable)
--

4. Transforming
--

5. Visualizing

---

# 1. Sorting
--

+ Reorganize rows in a dataset based on the values in a column
--

+ Can sort on multiple columns

---

# Sorting in R
--

+ Use [`order()`](https://www.r-bloggers.com/r-sorting-a-data-frame-by-the-contents-of-a-column/)
--

+ Specify the column you want to sort by<br>(in our case `eruptions` or `waiting`)
--

```r
df[order(df$column_to_sort_by),]
```
--

## Your Turn 2
+ Sort the Old Faithful data to find the shortest waiting time
+ Sort the Old Faithful data to find the longest waiting time

???
+ Why the comma?
+ The syntax is `df[row specifier, column specifier]`.
+ If a specifier is absent, R returns all.
---

# 2. Filtering
--

+ Only show rows that contain some value
--

+ Can filter by multiple values
--

+ Can filter by values in multiple columns

---

# Filtering in R
--

+ Provide some logical test (`<`, `>`, `==`, etc.)
--

+ The format is
--

```r
df[df$column_to_filter_by <logical test>,]
```

--
## Your Turn 3
+ Filter the Old Faithful data for all eruptions longer than 4 minutes

---

# 3. Aggregating Data
--

+ Trends only become clear in aggregate
--

+ Often where you discover the "so what"
--

+ Aggregating data meaningfully can be tricky
--

+ We'll be showing how to do this with R later

---

# 4. Transforming Data
--

+ Sometimes available categories don't make sense
--

+ Values may not be in the format you need (or have mistakes)
--

+ You always want to have a clean copy of the data to go back to
--

+ Best to keep track of what you've done
--

+ We'll be showing how to do this with R later

---

# 5. Visualizing Data
--

+ Quickly communicate information
--

+ Tell a clearer story
--

+ A picture is worth a thousands words
--

+ We've already seen this with the Old Faithful data

```r
hist(faithful$waiting)
hist(faithful$eruptions)

plot(faithful, main="Eruptions of Old Faithful", xlab="Eruption Time in Minutes", ylab="Waiting Time to Next Eruption in Min")
abline(lm(faithful$waiting~faithful$eruptions), col="red")
```

---

# 5 Data Analytics Tasks

1. Sorting
2. Filtering
3. Aggregating (PivotTable)
4. Transforming
5. Visualizing

---

# Derelict Vehicles

![img-center-90](images/derelictvan.png)

.center[Derelict Vehicles Across NYC]

---
# The Analytical Process

![img-center-80](images/valuechain.png)

---

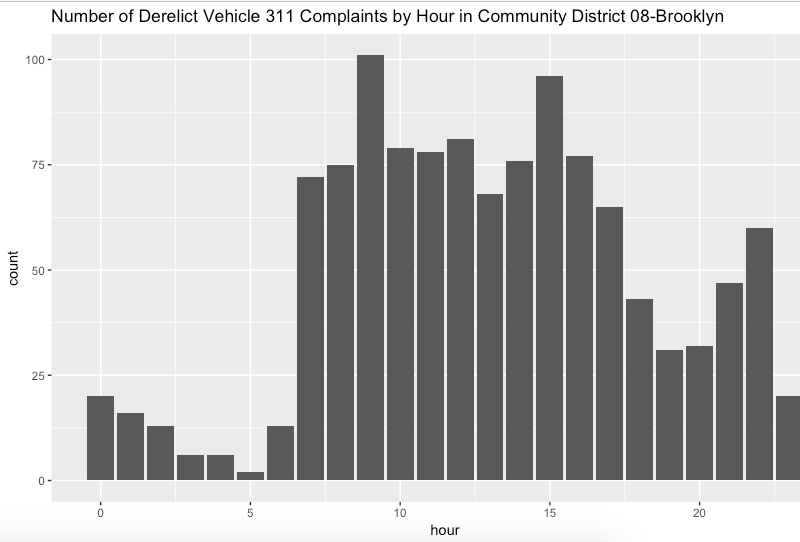

# Identify the Question
--

+ How many people complain about derelict vehicles?
--

+ Do people complain more at a particular time of day?
--

+ Do people complain more in a particular neighborhood or borough?
--

![img-center-55](images/datavis-r.png)

---

# Exercise: 311 Service Requests
--

+ Open the `311_a.R` script (already loaded in RStudio)
--

+ Follow along the code as we load the dataset
--

+ You can [download the code here](code/311_a.R)
--

+ The [data dictionary](https://data.cityofnewyork.us/api/views/erm2-nwe9/files/68b25fbb-9d30-486a-a571-7115f54911cd?download=true&filename=311_SR_Data_Dictionary_2018.xlsx)
explains each column

???
+ Students will conduct the same commands from Faithful with 311 exercise
+ Students will hit the roadblocks
+ Can't run summary statistics
+ Exercise will be run through script showing comments (not on slide)
+ Script will mirror the Faithful with intention of not working

---

# R Data Types

+ [Numeric](http://www.r-tutor.com/r-introduction/basic-data-types/numeric) vs [Factor](https://www.stat.berkeley.edu/~s133/factors.html)
--

![img-center-80](images/ice_cream.jpeg)

???
+ Students will understand a few of the different data types in R
+ They will use the `str` and `summary` command
+ This will be done with a live demo of code

---

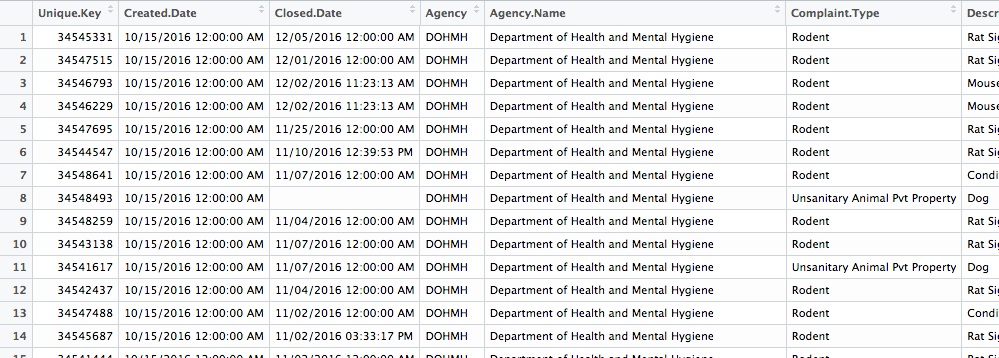

# R Data Structures
--

+ [Vectors](http://www.r-tutor.com/r-introduction/vector) and [matrices](http://www.r-tutor.com/r-introduction/matrix) (single data types)
--

+ [Lists](http://www.r-tutor.com/r-introduction/list) and [data frames](http://www.r-tutor.com/r-introduction/data-frame) (mixed data types)
--

![img-center-100](images/dataframe.png)

+ You often need to restructure your data to make it usable

???
+ Students will review work done in simple data load
+ They will learn key elements of data structures based on Faithful data
+ This will be done with live demo and discussion
+ They will use the `str` and `summary` command

---

class:center, middle
# Wrap-Up

???
+ Facilitator reviews the learning in the morning with participants
+ Facilitator answers any questions
+ If there is time, facilitator has participants switch and review someone else's code, then has them reflect on what they learned looking at someone else's code

---

class:center, middle
# Lunch
![img-center-60](images/automation.png)
Source: https://xkcd.com/1319/

---

class:center, middle
# Welcome Back!

---

# Data Wrangling (i.e. Cleaning)
--

+ Get data into right type or structure
--

+ Create subsets
--

+ Add packages to work with the data we have

???
+ start of section discussing manipulating data
+ picking up pieces from exercise where script failed
+ start of exercise 3

---

# Packages
--

+ Add-ons: extra functions, data viz, special features
--

+ Can help you load data, work with timestamps, create charts
--

+ If you need to do something, there's probably a package for it

--
+ To use: `install.packages()`

???
+ Students will understand the purpose and value of packages
+ This will be done with a discussion

---

# Exercise: 311 Service Requests

![img-center-80](images/datavis-r.png)

#### [Click to download the `311_b.R` code for this exercise (already loaded in RStudio)](code/311_b.R)

???
+ An example question of the 311 dataset
+ students will be walked through the exercise with a script
+ Prompts in the script with a more specific question
+ incidents per borough -> distribution of complaints

---

# Your Turn 4
--

+ Switch out derelict vehicles for another complaint type
--

+ Look at a different borough, ZIP, or community board
--

+ Look at day of the week instead of hour
--

+ Challenge yourself
--

+ We'll be around to help

---

class:center,middle
# It All Begins With a Question

???
+ Students will understand better the purpose of using code for analysis
+ Remind them we all have hypothesis -> need to be acknowledged

---

# Questions
--

+ How many?
--

+ Where?
--

+ When?
--

## What are some of your questions of this data?

???
+ Prompts for starting your investigation of the data
+ Students will have a way to start exploring data
+ Discussion leading into guided exercise

---

# Your Turn 5
--

+ Working in pairs or alone, start working on a question that interests you
--

+ Start with a new script and give it a name
--

+ Use the skills we've covered
--

+ Challenge yourself to do something new
--

+ Don't be afraid of not knowing
--

+ Use the documentation
--

+ Help each other out
--

+ We'll be around to help

---

class:center, middle
# 15 Min Break
![img-center-80](images/here_to_help.png)
Source: https://xkcd.com/1831/

---

# Debugging
--

+ Everyone gets errors all the time
--

+ It's just a matter of how complex they are<br>
--
_And fixing them_
--

+ **Syntax errors** -> using the wrong instructions
--

+ **Semantic errors** -> doing the wrong things
--

+ When in doubt, take a breath, try breaking things apart into smaller pieces, review the documentation, and search for help

???
+ Students will be introduced to key concepts in identifying and resolving errors
+ This will be done with a lecture/discussion leading into an exercise
+ Class exercise finding errors in code -> slide with code snippets in Markdown with errors
+ deal with issue of correctness

---

# Exercise

+ Debug your neighbor's R Script and verify results

???
+ Students will examine another student's code, run the code, and fix any errors
+ Students will have a better understanding of how to think in code
+ Goal is to get students talking to each other about their code
+ have documentation at end of slides

---

class:center,middle
# <a href="https://script.google.com/a/macros/datapolitan.com/s/AKfycbwMcE5pcJwZHdbSCN_2epwaXnRLSRPaLbHCAhxaZJ79UXaRpQ_l/exec" target="_blank">Click to submit your work</a>

---

class:middle,center
# Code Review

???
+ Students will review select code examples
+ Goal is to model a collaborative process for data analysis
+ Time buffer for end of class

---

class:center,middle
# Wrap Up

---

# Key Skills
--

+ R syntax and commands
--

+ [RStudio](https://www.rstudio.com/)
--

+ Load data
--

+ Explore data
--

+ Wrangle data
--

+ Visualize data
--

+ Anything else?

???
+ Students will review progress and give feedback on key takeaways

---

# Taking This Out of the Classroom
???
+ Facilitators reinforce key learning points with participants for integrating into their workflow
--

+ R is a powerful tool for cleaning, analyzing, and visualizing data
--

+ Integrating it into your workflow takes practice and a commitment to not giving up (Google is your friend)
--

+ [RStudio](https://www.rstudio.com/) makes it easy to get started
--

+ You should be able to [download R and RStudio on your work computer](https://ayeimanol-r.net/2014/01/16/getting-started-installation-of-rstudio-and-some-packages-using-ggplot-to-make-a-simple-plot/) (Use the zip/tarball option)

---
name:resources

# Key Links
--

+ [Download R](https://cloud.r-project.org/)
--

+ [Download RStudio](https://www.rstudio.com/products/rstudio/download/)
--

+ [Download exercise files from this class](http://bit.ly/data-analysis-r-code)

---

# Learning and Practicing More with R
--

+ [Hands-On Programming with R](https://rstudio-education.github.io/hopr/) - Free online book with code examples meant for non-programmers
--

+ [R for Data Science](https://r4ds.had.co.nz/)- Free online book covering basic topics in data science with R
--

+ [R Cookbook](http://www.cookbook-r.com) - Free online walkthrough of the basics
--

+ [R Programming Coursera Course](https://www.coursera.org/learn/r-programming) - Free course in R that runs regularly
--

+ [Swirl](http://swirlstats.com) - Interactive learning inside of R `install.packages(“swirl”)`

---

# Other Useful Resources
--

+ [NYC Open Statistical Programming Meetup](https://www.meetup.com/nyhackr) - Monthly talks about R and sponsor of the [NYC R Conference](http://www.rstats.nyc/)
--

+ [Tidyverse](https://www.tidyverse.org) - R packages for Data Science
--

+ [Stat Methods](http://statmethods.net) - Great documentation for doing data analysis in R
--

+ [UCLA Stats](https://stats.idre.ucla.edu/other/dae/) - Many examples of statistical analysis with comparisons between R, Stata, SPSS, etc.
--

+ [Stack Overflow](https://stackoverflow.com/questions) - One of the best Q&A sites for technology
--

+ [Class handout](workbook.pdf)
--

+ [Datapolitan training classes](https://www.datapolitan.com/) - The online home of our training materials

???
+ Students will have key resources for moving forward in their learning

---

## .center[Contact Information]

### Elizabeth DiLuzio
<ul>
  <li style="font-size:34px">
        Email: elizabeth[at]datapolitan[dot]com
    </li>
  <li style="font-size:34px">
        Twitter: <a href="https://twitter.com/lizdiluzio">@lizdiluzio</a>
    </li>
</ul>

### Mark Yarish
<ul>
    <li style="font-size:34px">
        Email: mark[at]datapolitan[dot]com
    </li>
</ul>

</ul>

---

class:center, middle
# THANK YOU!

---

# Exploring Data

```R
View()
# show dataset as spreadsheet in Viewer
```
```R
str()
# identify data type and structure
```
```R
nrow()
# identify the number of rows
```
```R
ncol()
# identify the number of columns
```
```R
colnames()
# list the name of every column
```

---

# Manipulate Data

```R
sort()
# sort the values in a column
```
```R
data.frame()
# structure data into a matrix
```
```R
subset()
# extract data from a dataframe
```

---

# Calculating Summary statistics

```R
min()
# identify minimum value
```
```R
max()
# identify maximum value
```
```R
median()
# calculate median value
```
```R
mean()
# calculate mean value
```

---

# Visualizing Data

```R
hist()
# make a chart with numeric data
```
```R
plot()
# plot two numeric variables along an x-y axis
```
```R
abline()
# add a trendline to a plot
```
```R
table()
# make a table with factor data
```
```R
prop.table()
# make a table with percentages
```
```R
barplot()
# make a chart with factor data
```

---

# dplyr

```R
install.packages("dplyr")
require(dplyr)
```
```R
tbl_df()
# create a dataframe
```
```R
filter()
select()
# create a subset; filter for rows, select for columns
```
```R
mutate()
# add a column
```
```R
arrange()
# sort rows by category
```

---

# lubridate

```R
install.packages("lubridate")
require(lubridate)
```
```R
mdy_hms()
# format timestamp into month, day, year, hour, min and second
# other commands: mdy_hm, mdy, dmy, etc.
```
```R
hour()
# extract hour from timestamp
# other commands: day, minute, second, etc.
```
---

# ggplot2

```R
ggplot()
# plot a dataframe
```
```R
geom_bar()
# make a proportional bar chart
# alternative is geom_col()
# used for factor data
```
```R
ggtitle()
# add a title to a plot
```
